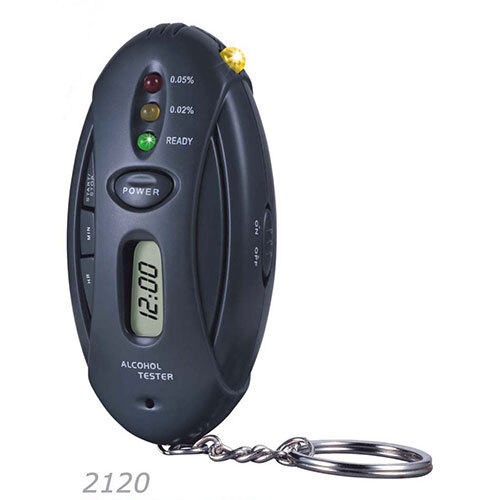

SZDT - 1 BREATH ANALYSER

Name: SZDT - 1 BREATH ANALYSER
Brand: AMRUTHA TECHNOLOGIES
Price: 800.0 INR
Availability: InStock

Price 800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SZDT - 1 BREATH ANALYSER Specification

Number of Specimens
Single user per test

Features
LED indicators, Keychain mount, Clock Function

Resolution
0.01% BAC

Temperature
5C - 40C

Display Type
Digital LCD

Humidity
15%-90% RH

Port Size
Mouthpiece operation

Equipment Type
Digital Alcohol Tester

Operating Voltage
3V (from AAA batteries)

Interface Type
Keychain/portable

Accuracy
0.01% BAC

Power Supply
2 x AAA batteries

Specimen Size
Breath sample

Gas Pressure
Ambient

Application
Detecting alcohol in breath

Test Range
0.00% - 0.19% BAC

Mounting Type
Handheld/keychain

Automation Grade
Manual

Response Time
Within 5 seconds

Measuring Range
0.00% - 0.19% BAC

Usage
Personal/Portable

Machine Weight
About 60g

Test Speed
Within 5 seconds

Control Mode
Power Button

Body Color
Black

Storage Condition
Store in dry, cool place

Dimensions
Approx. 115mm x 45mm x 25mm

Alarm Function
Beep sound for high alcohol level

LED Indications
Three level: >0.05%, >0.02%, Ready

Sensor Type
Semiconductor alcohol sensor

Clock Feature
12:00 Digital time display

SZDT - 1 BREATH ANALYSER Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About SZDT - 1 BREATH ANALYSER

Alcohol breath test with short ready time/quick response and resume:
Type A - 3-step with colored LED indication:
Under 0.02% BAC (0.1mg / L BRAC) - Green
Over 0.02% BAC (0.1mg / L BRAC) - Yellow
Over 0.05% BAC (0.25mg / L BRAC) - Yellow & Red
Countdown and count-up timer keep the deadline of your parking
Super-bright orange LED flashlight with key chain
Type: Electrochemical Gas Analyzer

Accurate and Fast Alcohol Detection

The SZDT-1 Breath Analyser delivers precise BAC measurements using a reliable semiconductor alcohol sensor. It boasts a fast response time and high accuracy of 0.01% BAC, ensuring users receive trustworthy results in just seconds. This makes it an essential tool for personal safety before driving or attending sensitive events.

Compact Portability with User-Friendly Features

Designed for convenience, the SZDT-1 is lightweight, compact, and can be easily attached to a keychain. With a simple power button and digital LCD display, the device is tailored for one-handed operation. Additional features include LED level indicators, a digital clock, and a clear alarm for elevated readings.

FAQ's of SZDT - 1 BREATH ANALYSER:

Q: How does the SZDT-1 Breath Analyser detect alcohol levels?

A: The analyser measures alcohol concentration in your breath using a semiconductor alcohol sensor. After you blow into the mouthpiece, it detects the BAC and displays the result on a digital LCD within 5 seconds.

Q: What do the LED indicators on the device mean?

A: The SZDT-1 has three LED indicators: one lights up when the result is above 0.05% BAC, another for above 0.02% BAC, and a 'Ready' light. If your BAC is high, the device also emits a beeping alarm.

Q: When should I use the breath analyser for the most accurate reading?

A: For the best accuracy, use the device at least 20 minutes after your last drink or food intake. This avoids false readings due to residual alcohol in the mouth.

Q: Where can I store the SZDT-1 Breath Analyser when not in use?

A: Store the device in a dry, cool place to protect the sensor and electronics. Avoid humid environments to ensure long-term reliability.

Q: What is the process for taking a breath sample with this device?

A: Simply power on the device using the button, wait for the 'Ready' LED, and blow steadily into the mouthpiece. The analyser will then process the sample and display your BAC.

Q: What are the benefits of using this portable breath analyser?

A: The SZDT-1 allows you to conveniently and quickly check your BAC, promoting personal safety and responsible alcohol consumption. Its portable keychain design ensures it's always accessible when needed.
