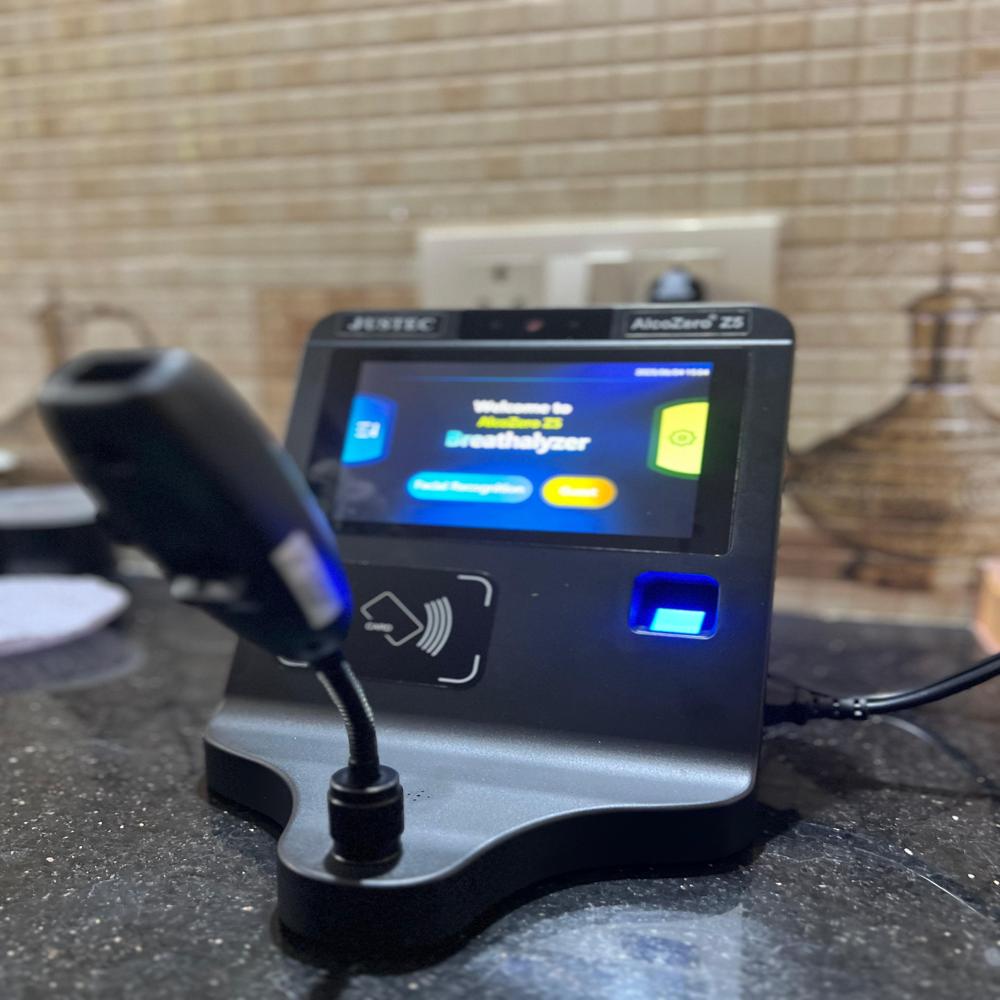

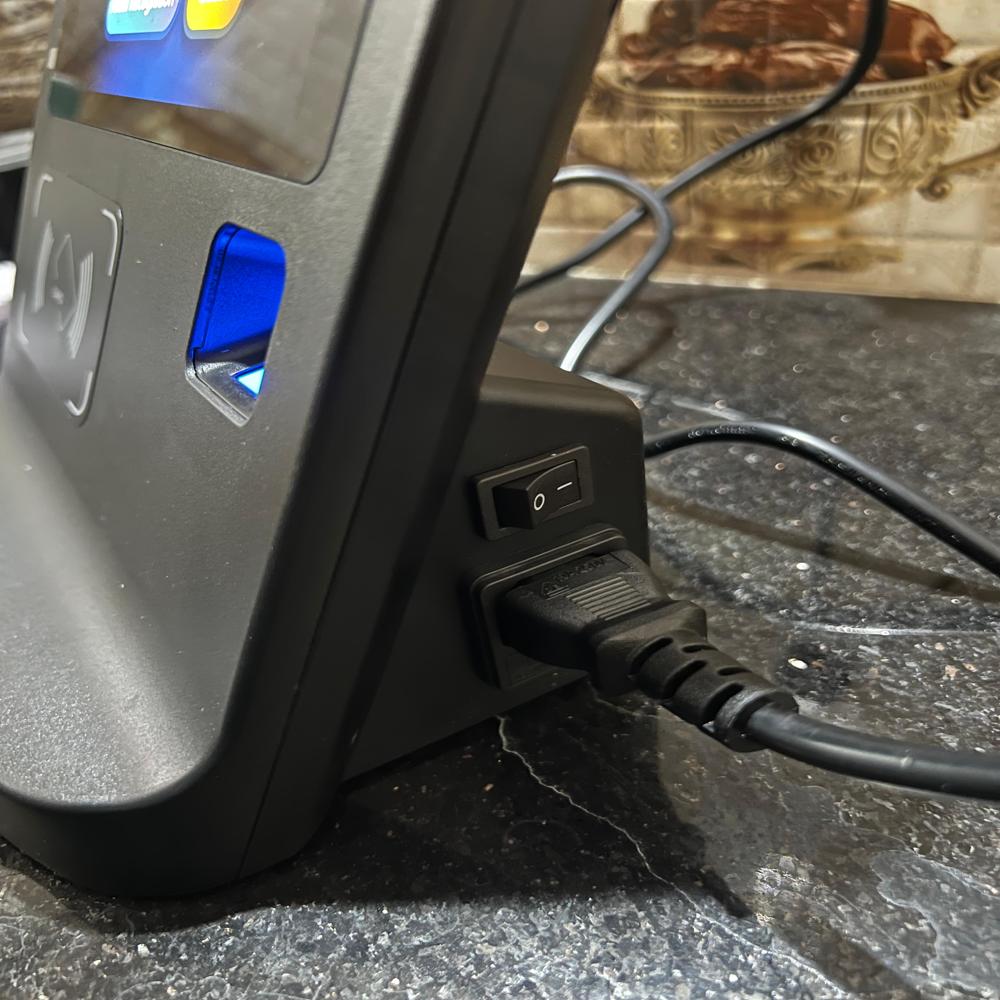

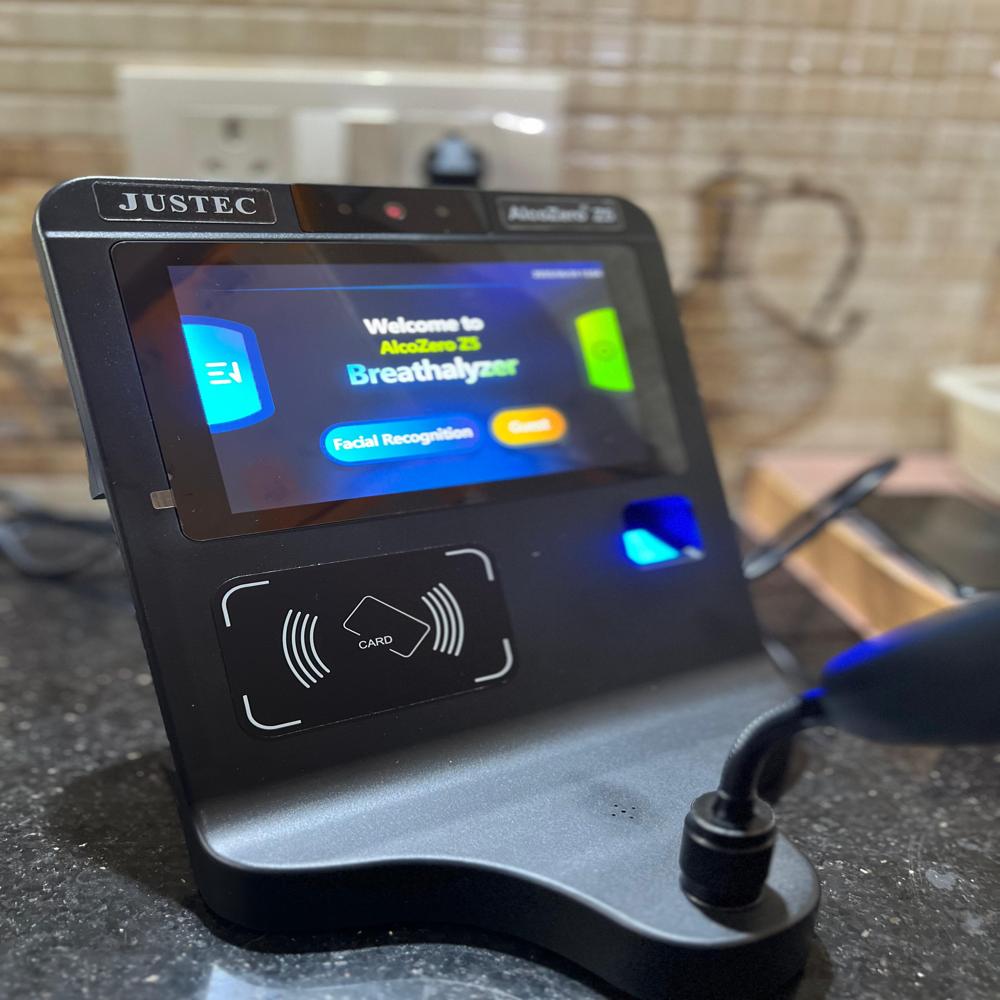

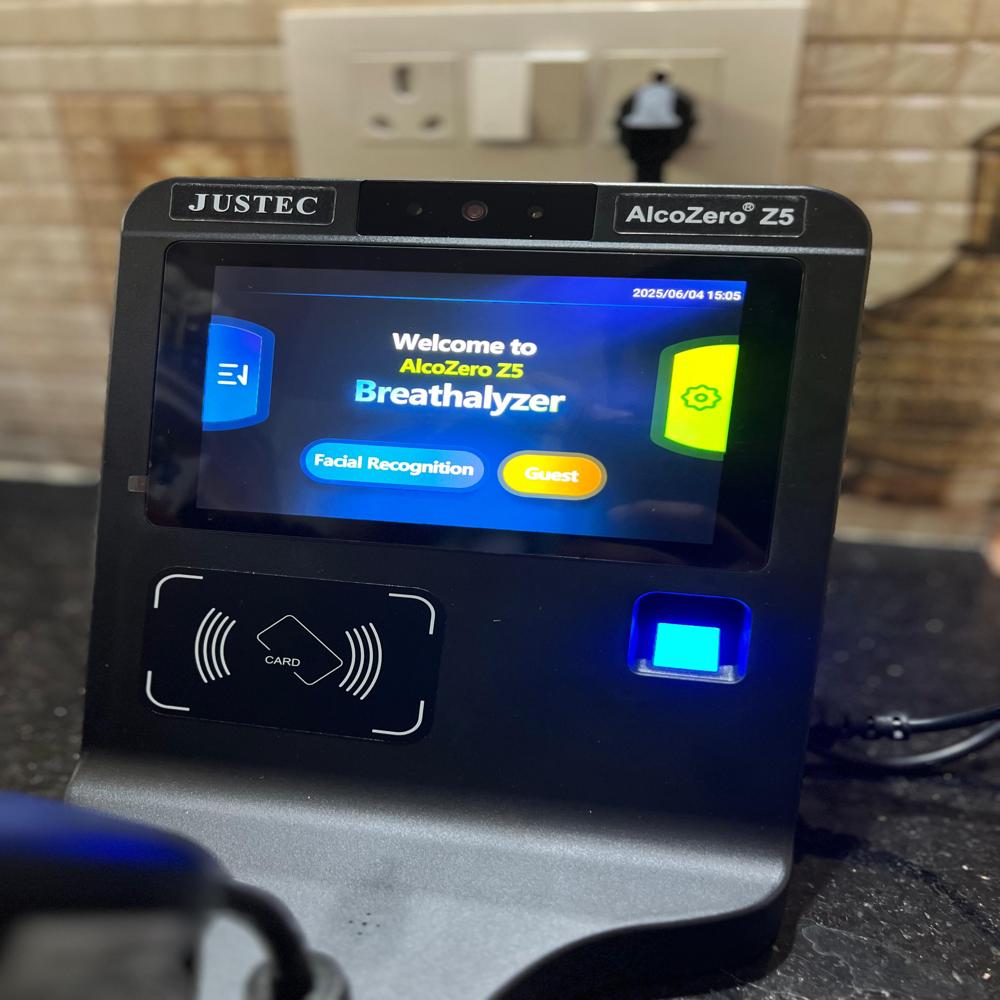

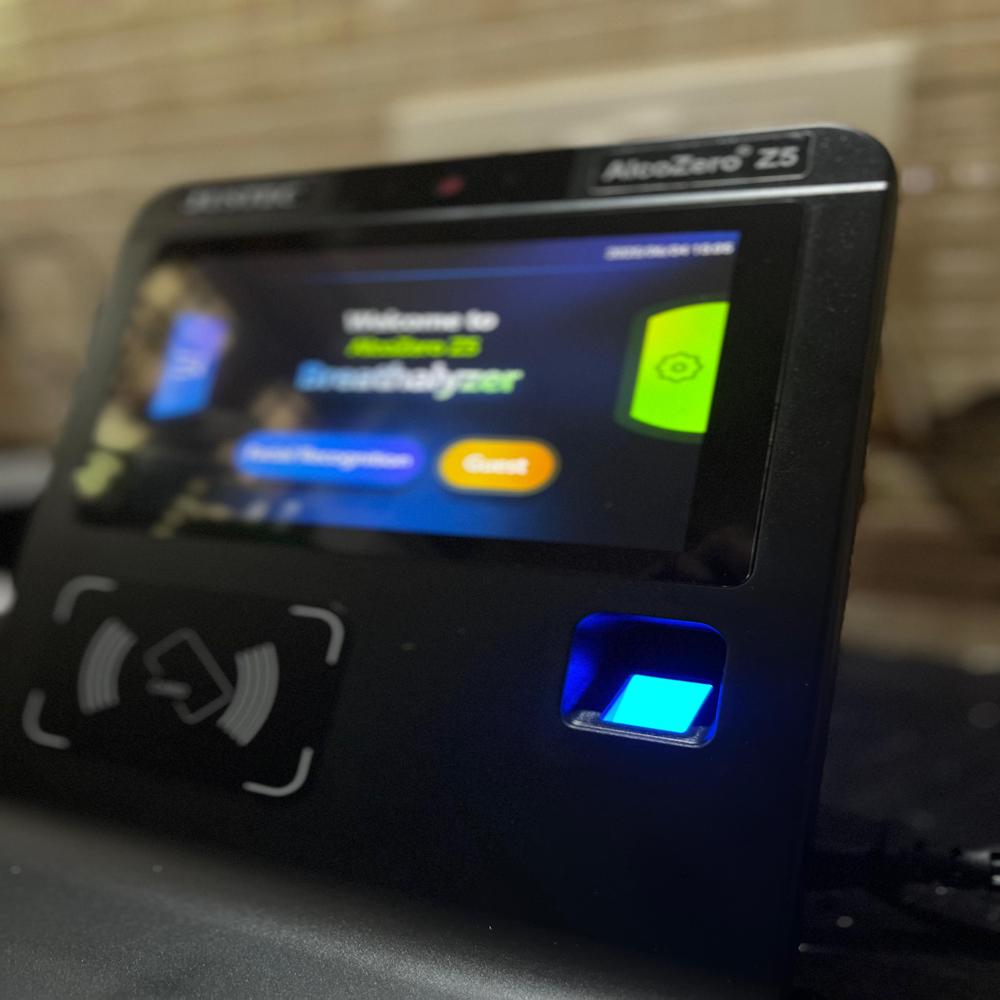

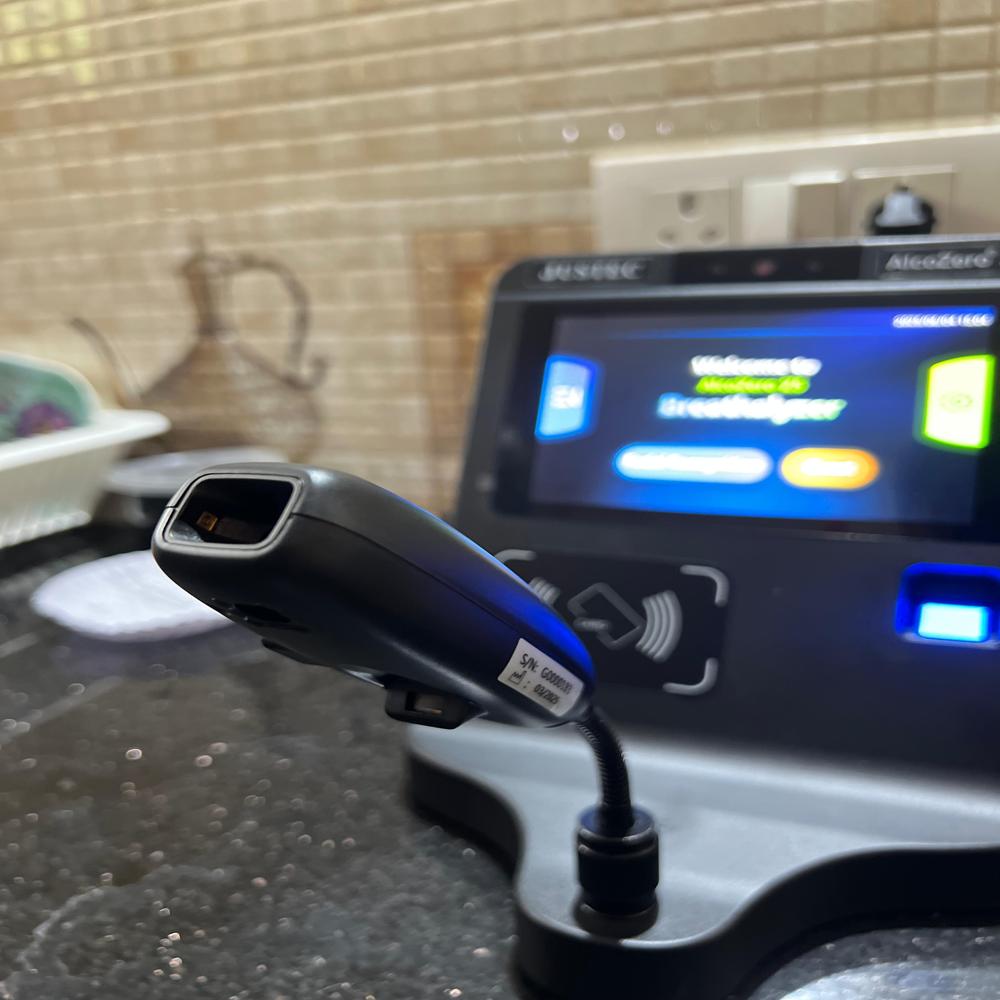

AMRUTHA WORK PLACE 5 ALCOHOL BREATH ANALYSER

Send Inquiry

Request To Call Back

AMRUTHA WORK PLACE 5 ALCOHOL BREATH ANALYSER

Name: AMRUTHA WORK PLACE 5 ALCOHOL BREATH ANALYSER
Brand: AMRUTHA TECHNOLOGIES
Price: 78000.0 INR
Availability: InStock

Price 78000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

AMRUTHA WORK PLACE 5 ALCOHOL BREATH ANALYSER Specification

Operating Voltage
12V DC

Display Type
Large Color TFT Touch Screen

Interface Type
USB, Ethernet, Wi-Fi, Relay output

Equipment Type
Work Place Alcohol Breath Analyser

Features
Face recognition, RFID, Fingerprint, Data logging, Real-time clock, Touchscreen, Guided operation, User management

Application
Industrial, Corporate, Commercial, Workplace Safety

Humidity
0-95% RH (non-condensing)

Specimen Size
Min 1L breath

Test Range
0.000 - 0.500% BAC

Mounting Type
Table-top or wall mount

Response Time
5 seconds

Measuring Range
0.000 - 0.500% BAC (Blood Alcohol Content)

Accuracy
0.005%BAC (at 0.05%BAC)

Power Supply
DC 12V/2A Adapter

Automation Grade
Automatic

Resolution
0.001%BAC

Port Size
Standard mouthpiece intake

Temperature
Operating: -10C to +50C

Gas Pressure
Ambient

Number of Specimens
Single sample per test

Usage
Alcohol detection in workforce; time attendance integration

Capacity
100,000 records (storage)

Machine Weight
1.2 kg

Test Speed
Fast; less than 5 seconds per reading

Control Mode
Touchscreen, RFID, Face/Fingerprint Recognition

Alarm Output
Configurable relay for fail result

Print Option
Optional external thermal printer

Data Storage
Up to 100,000 log entries

Compliances
CE, ISO certified

Calibration Interval
Every 6-12 months (recommended)

Voice Prompts
Supports multilingual voice guidance

Dimensions
210mm x 180mm x 60mm

Sensor Type
Advanced Fuel Cell Sensor

Connectivity
Wi-Fi, TCP/IP, USB

Body Material
High-grade ABS plastic

Power Backup
In-built battery backup, 4 hours of operation

User Authentication
Face, Fingerprint, RFID card, PIN

AMRUTHA WORK PLACE 5 ALCOHOL BREATH ANALYSER About

Sensor Type: The fuel cell sensor is insensitive to
gases such as acetone and carbon
monoxide; the influence is negligible.
Input method: Touch screen + Fingerprint module
Blowing Time: 2 seconds
Operating temperature range: -10C to +50C
Storage Temperature range: -25C to +70C
Ambient Pressure: (600-1400) hpa
Ambient Humidity: (15-95) % rh
Storage Capacity: Up to 100,000 measured values with
records

Advanced Fuel Cell Technology for Precise Detection

The AMRUTHA WORK PLACE 5 utilises an advanced fuel cell sensor to ensure fast and highly accurate alcohol detection in the workplace. With an impressive accuracy of 0.005%BAC (at 0.05%BAC) and a measuring range up to 0.500% BAC, it is perfectly suited for industrial and corporate safety applications where precision is essential.

Comprehensive User Authentication & Data Management

This analyser integrates multiple authentication methods: face recognition, fingerprint, RFID card, and PIN. With its large color TFT touchscreen, user management is straightforward and secure. The device supports data storage of up to 100,000 test records, enabling robust time attendance integration and detailed record keeping for compliance and analysis.

Flexible Operation & Seamless Connectivity

Designed for flexible use, AMRUTHA WORK PLACE 5 can be table-top or wall-mounted. It offers connectivity via USB, Ethernet, and Wi-Fi, supporting real-time data transfer and seamless integration with workplace IT systems. The analyser comes with in-built battery backup ensuring up to four hours of continual operation, ideal for uninterrupted workplace safety.

FAQ's of AMRUTHA WORK PLACE 5 ALCOHOL BREATH ANALYSER:

Q: How does the AMRUTHA WORK PLACE 5 Alcohol Breath Analyser ensure accuracy during testing?

A: The analyser utilizes an advanced fuel cell sensor, providing a high degree of accuracy of 0.005% BAC (at 0.05% BAC). It has a rapid response time of less than 5 seconds for each test, ensuring precise and reliable results for workplace safety.

Q: What is the recommended calibration interval for the analyser to maintain optimal performance?

A: It is recommended to calibrate the AMRUTHA WORK PLACE 5 every 6-12 months to maintain consistent accuracy and performance, depending on the usage intensity.

Q: When should I use the in-built battery backup feature?

A: The in-built battery backup offers up to 4 hours of operation, useful during power outages or when portable use is required in different locations within a facility.

Q: Where can the analyser be installed for best results in the workplace?

A: The device is designed for table-top or wall-mount installation, making it adaptable for entrances, security checkpoints, or any area where workforce alcohol testing and attendance verification are needed.

Q: What is the process for user authentication on this device?

A: Users can authenticate their identity through multiple modes: face recognition, fingerprint scanning, RFID card, or entering a PIN, all managed easily via the touchscreen interface.

Q: How is data stored and accessed on the device?

A: All test results and attendance records are logged internally, with capacity for up to 100,000 entries. Data retrieval is possible through USB, Ethernet, or Wi-Fi, facilitating easy analysis and reporting.

Q: What benefits does the AMRUTHA WORK PLACE 5 offer to workplace safety and administration?

A: It enhances safety by accurately screening for alcohol use, integrates with time attendance systems, supports multilingual voice guidance, maintains secure logs, and helps meet compliance requirements with CE and ISO certifications.
