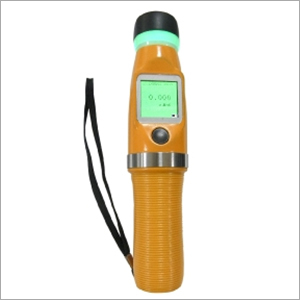

Handheld Breath Alcohol Analyzer

Details

Technical Data

Principle of measurement

Electrochemical Sensor, alcohol-specific

Measurement Range

0~ 80mg/100ml  BAC

Test Mode

For quick testing, automatic sampling

Way of Breath Sample Extraction

Motor continuous air extraction, speed no less than 0.8L

Temperature Range-operation

-5°C~45°C

Temperature Range-storage

-30°C~70°C

Measuring Time

Adjustable( Minimum time: 1 second)

Working Pressure

600~1400hPa

Working Temperature

20~98%r.h.

Screen

OLED Digital Screen

Battery

1 rechargeable battery, 3.7V/3000mAh

Continuous Working Time

More than 8 hours

Flashing Light

2 lights of 3W

Vibration Alarm

When the concentration exceeds the set point value, device will give Vibration Alarm

Dimensions

L(330)mm X Outer Diameter(45)mm

Weight

Approx. 254g

 Test    item

Blowing distance 4-5cm

Test concentration(mg/100ml)

20

40

150

Analyzing time

<5s

Clearing time

<10s

Measuring range

15~35

35~65

>80
